KIT 8611 RED + 86236

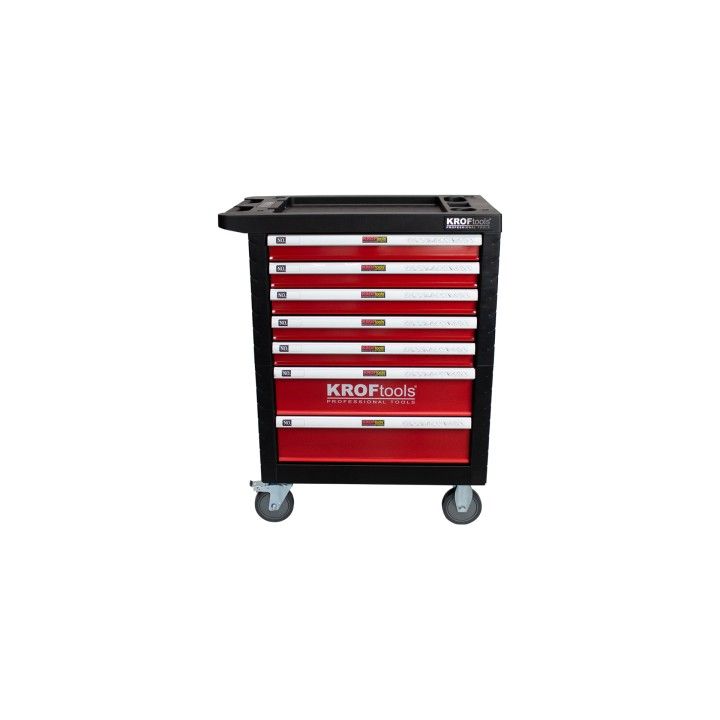

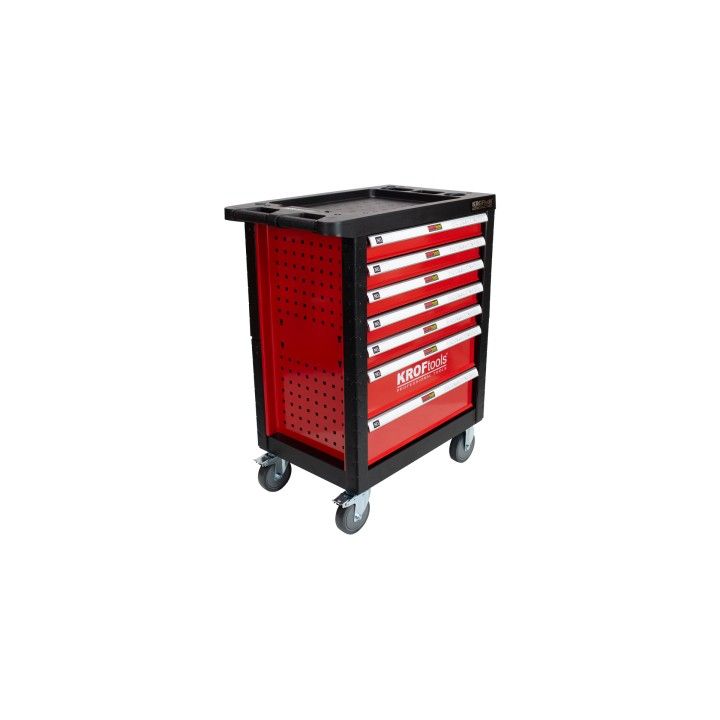

Car measures:
Length - 765mm
Length without top - 685mm
Width - 460mm
Height without wheel - 820mm
Height with wheel - 970mm

Drawer dimensions:
(5x) S Drawer: 538 x 397 x 67mm
(1x) M Drawer: 538 x 397 x 125mm
(1x) L Drawer: 538 x 397 x 145mm

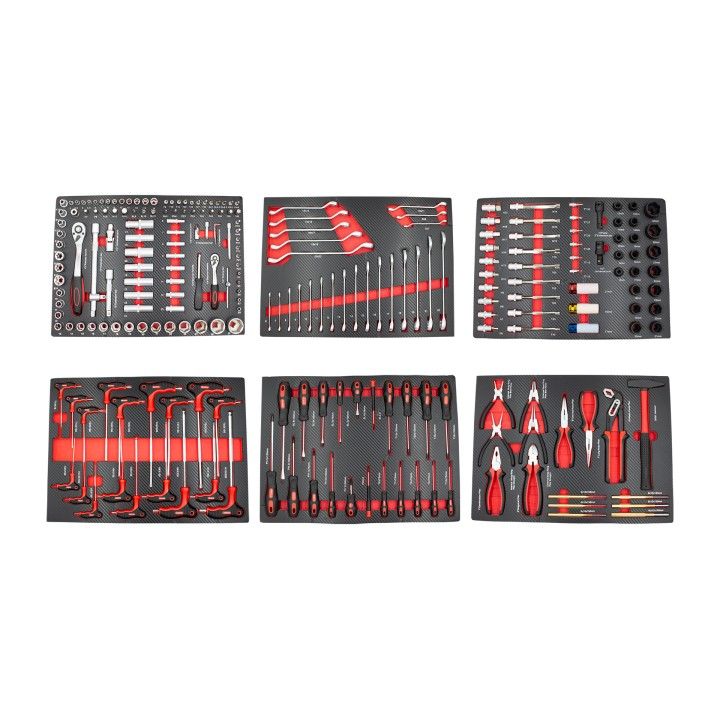

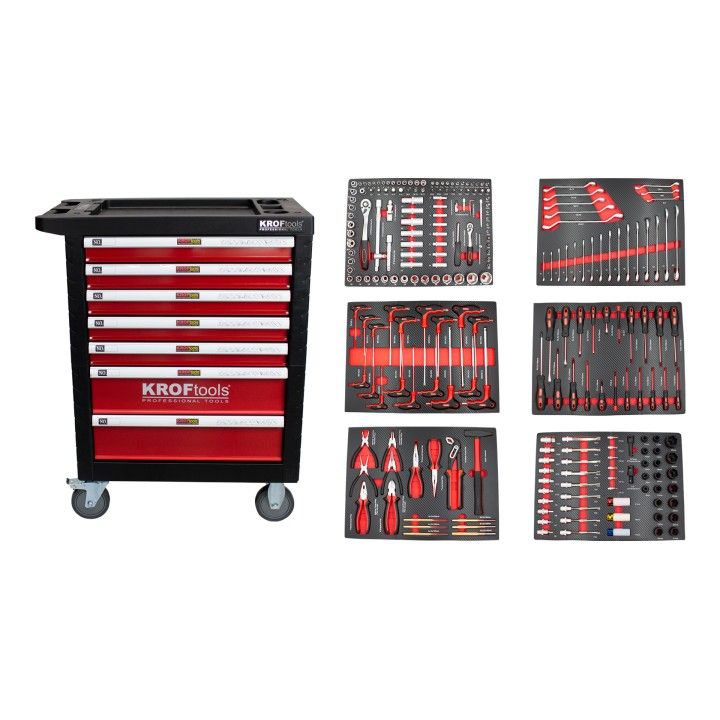

Composition:

Module	Description
Module 1	(2x) Ratchet handle: 1/2”, 1/4" (40CR+CRMO) (4x) Extension bar: 1/4" (100mm, 50mm),1/2" (125mm, 250mm) (CRV) (2x) Universal joint: 1/2”, 1/4" (CRV) (1x) Three way adapter 3/8": female part to 1/2" male part (CRV) (1x) Sliding bar: 1/4” (CRV) (1x) Bit holder 1/4”: (Carbon steel) (3x) Allen key: 1.5,2,2.5mm (Carbon steel) (13x) Metric socket 1/4”: 4,4.5,5,5.5,6,7,8,9,10,11,12,13,14mm (CRV) (17x) Metric socket 1/2": 10,11,12,13,14,15,16,17,18,19,20,21,22,24,27,30,32mm (CRV) (8x) Metric deep socket 1/4": 6,7,8,9,10,11,12,13mm (CRV) (7x )Metric deep socket 1/2": 14,15,16,17,19,21,22mm (CRV) (1x) Adapter 1/2" (5x) E socket 1/4”: E4,E5,E6,E7,E8 (8x) E socket 1/2”: E10,E11,E12,E14,E16,E18,E20,E24 (17x) Bits: H7,H8,H10,H12,H14,SL8,SL10, SL12,PH3,PH4,PZ3,PZ4,T40,T45,T50,T55,T60 (18x) Socket Bits: T30,T27,T25,T20,T15,T10,T8,SL4,SL5.5,SL6.5,HW3,HW4,HW5,HW6,PH1,PH2,PZ1,PZ2
Module 2	(16x) Combination spanners: 6,7,8,9,10,11,12,13,14,15,16,17,18,19,21,22mm (Carbon steel) (8x) Offset ring spanners: 6*7-8*9-10*11-12*13-14*15-16*17-18*19-20*22mm (Carbon steel)
Module 3	(20x) 1/2" Impact socket: 8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,27,30,32mm (CRV) (1x) Impact universal joint 1/2" (CRV) (1x) 1/2"Dr. impact extension bar 75mm (CRV) (3x) 1/2"Dr. spark socket: 17,19,21mm (CRV) (6x) 1/4" socket bits: T10,T15,T20,T25,T27,T30 (CRV) (10x) 1/2" socket bits: H6,H7,H8,H9,H10,H12,H14,H17,H19,H22: Length:55mm (CRV) (9x) 1/2" socket long bits: T40-T45-T50-T55-T60-T70-M10-M12-M14: Length:139mm (CRV)
Module 4	(18x) T ball hex key: 2*100,2.5*100,3*100, 4*150,5*150,6*150,7*150, 8*200,10*200mm;T10*75, T15*100, T20*100,T25*150, T27*150, T30*150,T40*150, T45*200,T50*200mm
Module 5	(19x) Screwdrivers: PH0*100,PH1*75,PH2*100, PH2*38,PH3*150,SL3*100, SL5*75,SL6*100,SL6*38, SL8*150,T6*75,T7*75,T8*75, T9*75,T10*75,T15*100, T20*100,T25*100, T30*100 (CRV) (2x) Precision screwdriver: SL2,PH0 (CRV)
Module 6	(1x) Water pump pliers 250mm (Carbon Steel) (1x) Mechanism hammer 300gr (Carbon steel) (1x) Combination pliers 175mm (Carbon steel) (1x) Long nose pliers 200mm (Carbon steel) (1x) Telephone pliers 200mm (Carbon steel) (1x) Diagonal pliers 175mm (Carbon steel) (4x) Circlip pliers internal bent nose/external bent nose circlip pliers internal straight/ external straight 150mm (Carbon steel) (6x) Cylindrical punching: 3*150-4*150-5*150-6*150 8*150-10*150mm (CRV)
