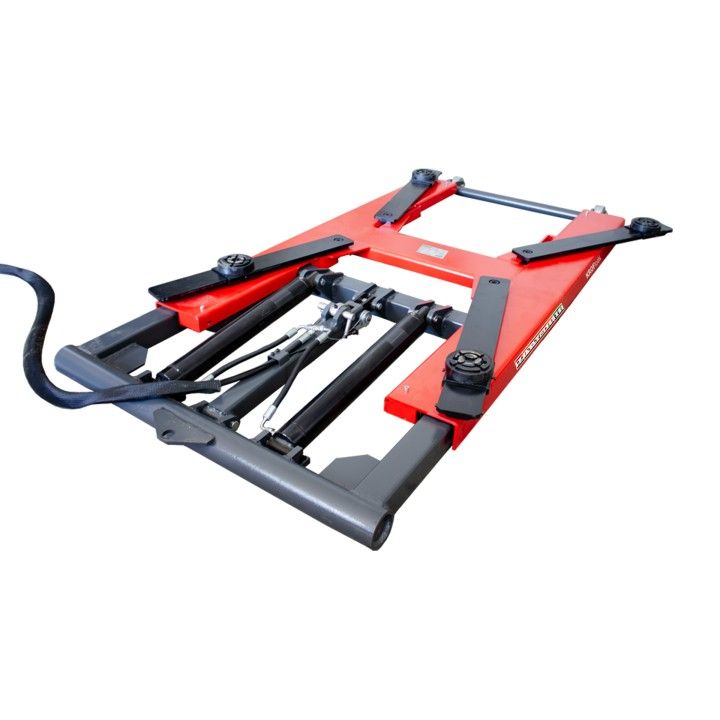

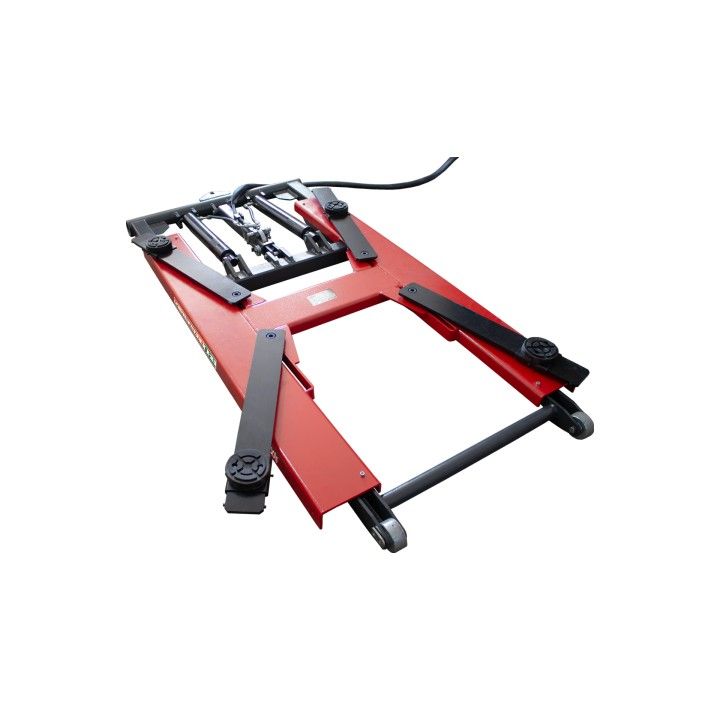

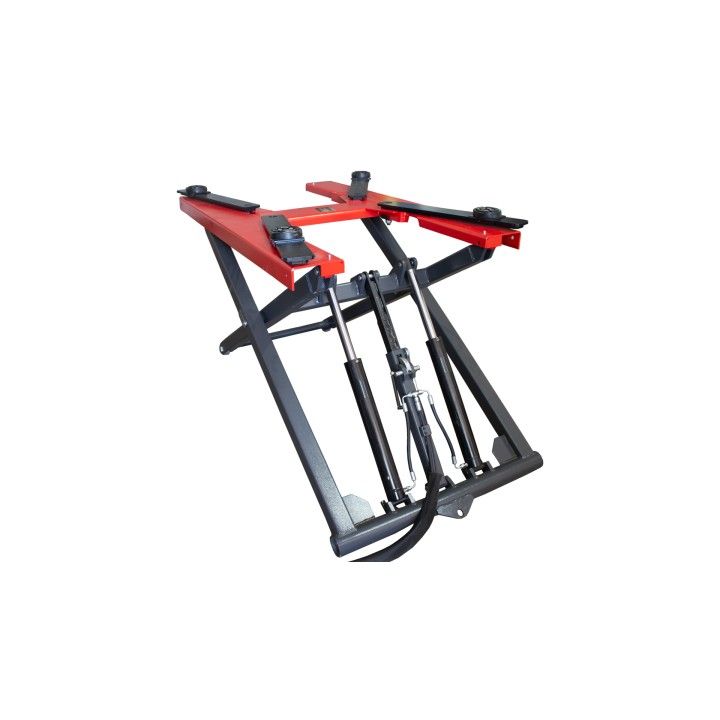

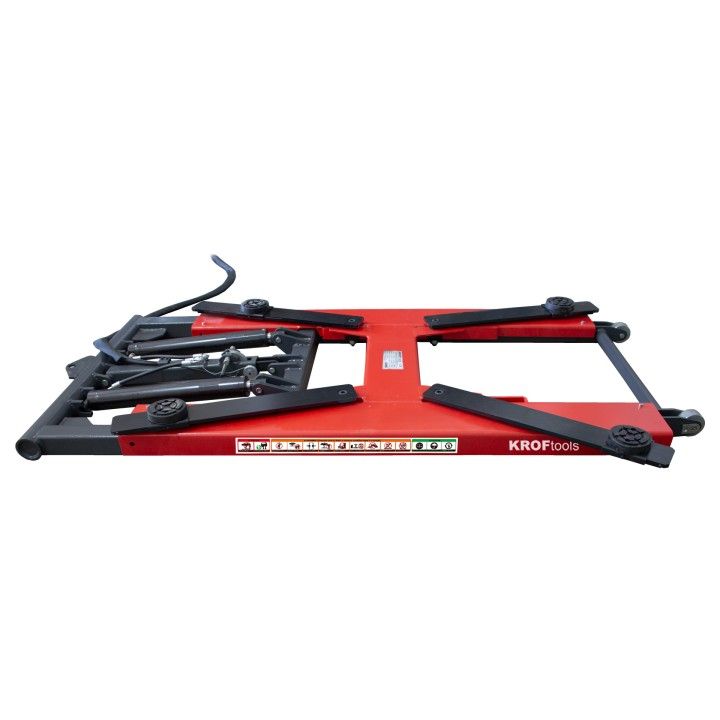

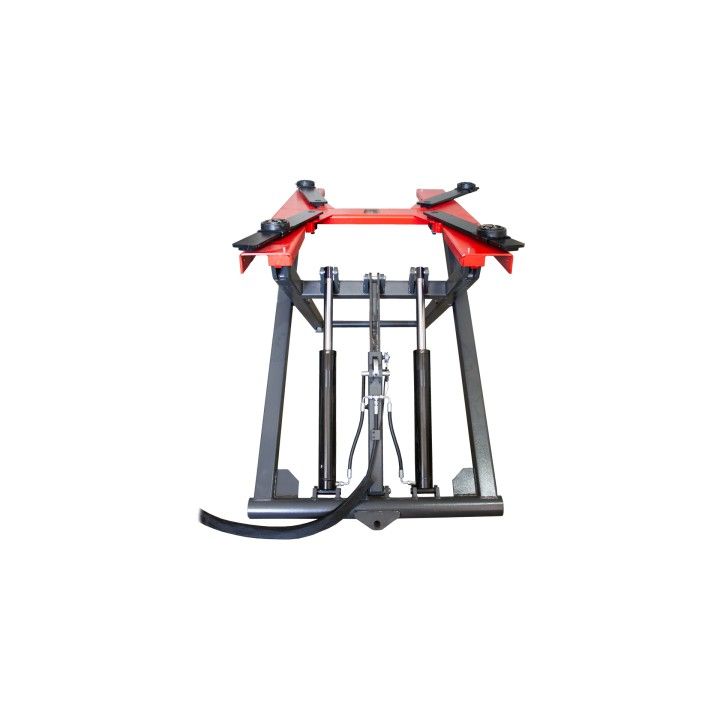

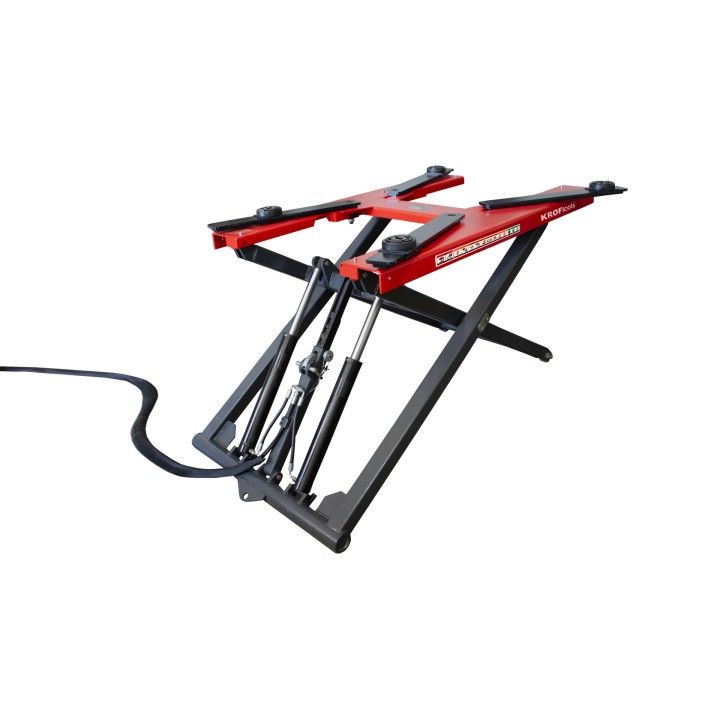

PORTABLE MID RISE SCISSOR LIFT 3T
Ref: 9830
Characteristics:
Capacity: 3T
Maximum lifting height: 1200mm
Maximum lifting height with adapters: 1350mm
Minimum height: 130mm
Overall length: 2230mm
Overall width: 1080mm
Lifting time: ≤ 35s
Lowering time: ≤ 25s
Power supply: AC 220V±5% 60Hz
Power: 2.2KW
Hydraulic oil: 12L
Working temperature: 5-40ºC
Working humidity: 30-95ºC
Noise: < 76db
Installation altitude: 1000m
Storage temperature: -25℃~55℃
Packaging Dimensions:

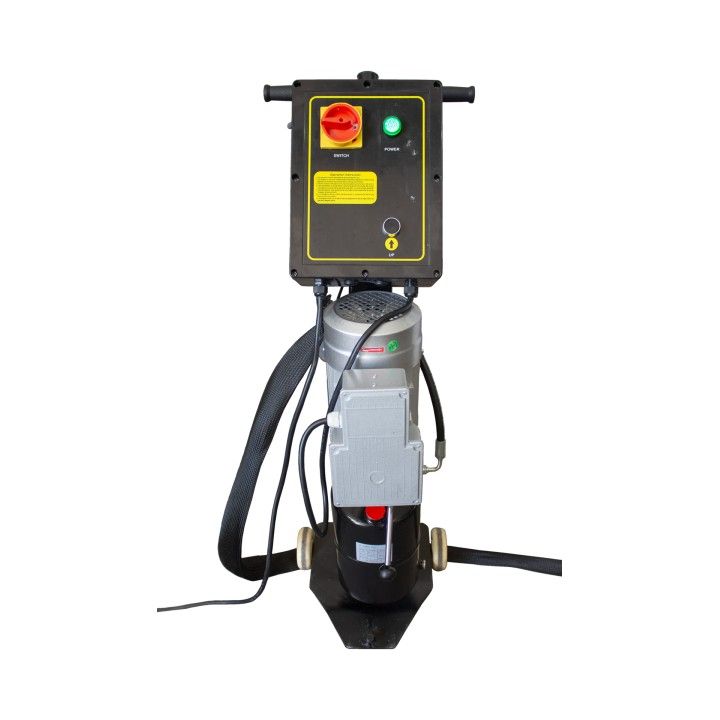

| Structure | Control Box | |
| Packaging | Steel Frame | Steel Frame |
| Volumes | 1/2 | 2/2 |
| Length | 2,3 | 0,91 |
| Width | 1,08 | 0,40 |
| Height | 0,27 | 0,47 |
| Cubic Meters | 0,67 | 0,17 |
| Net Weight (Kg) | 395 | 37 |
| Gross Weight (Kg) | 409 | 42 |
