PARKING LIFT - ADDITIONAL TO 9881

Characteristics:
Lifting Capacity: 2.7T
Lifting Height: 2160mm
Lifting time: 65s
Total height: ≤3502mm
Total width: 2440mm
Platform width: 2200mm
Platform length: ≤4180mm
Motor: 2.2Kw, 220V/50Hz, 1Ph
Rise time: ≤75s
Descent time: 18sec≤t≤60s
Noise level: ≤70dB (A)
Operating temperature: 0°C-50°C
Relative humility: 90%

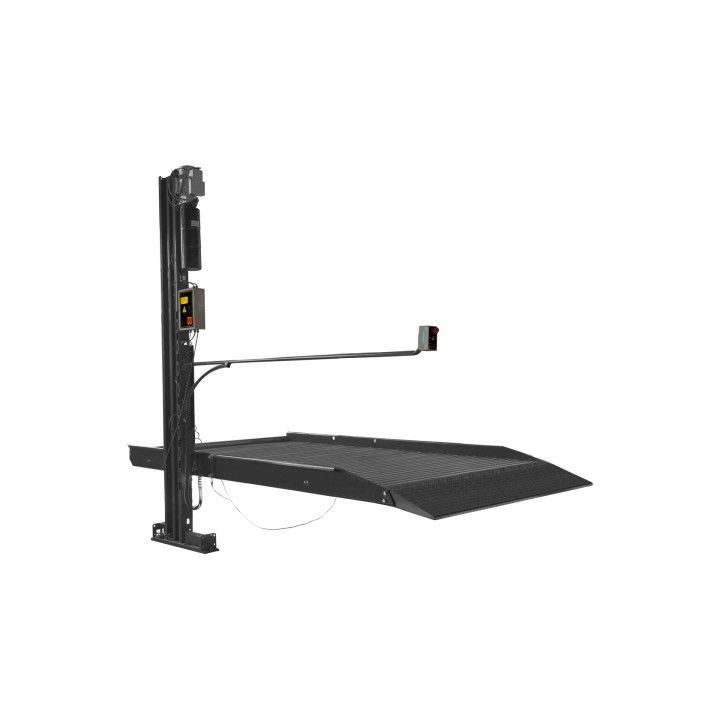

NOTE I: Demonstrative image

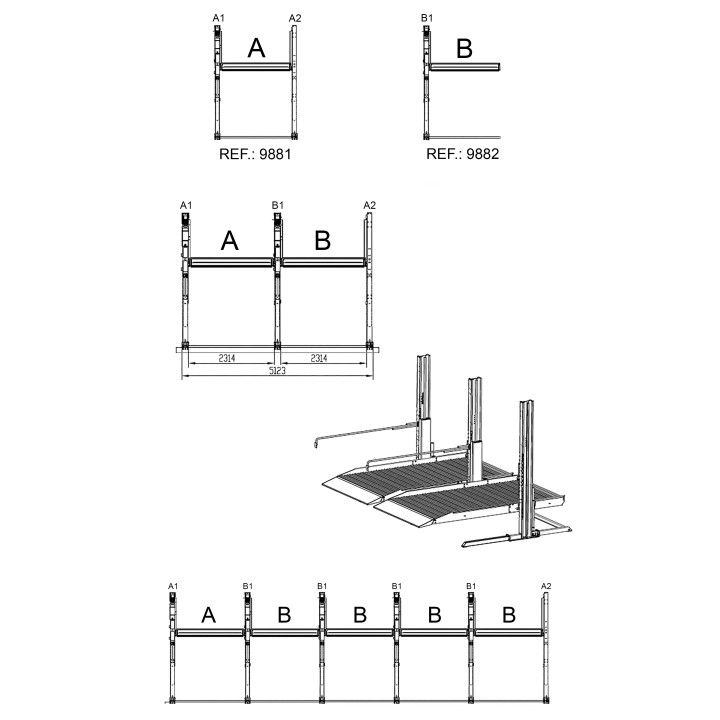

NOTE II: Option to purchase several elevators for joint installation

Packaging Dimensions:

	Structure	Platform	Engine	Ramp
Packaging	Steel Structure	Steel Structure	Steel Structure	Steel Structure
Volumes	1/4	2/4	3/4	4/4
Length	3,78	3,8	10	2,2
Width	0,85	0,52	2,7	0,76
Height	0,3	0,31	2,9	0,2
Cubic Meters	0,96	0,61	78,3	0,33
Net Weight (Kg)	321	330	24	200
Gross Weight (Kg)	341	345	25	200
