NEW DESIGN

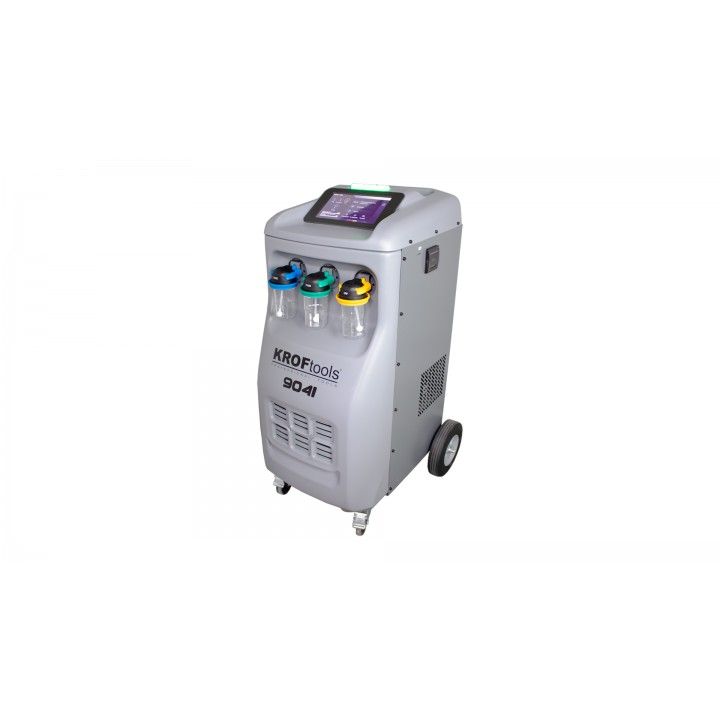

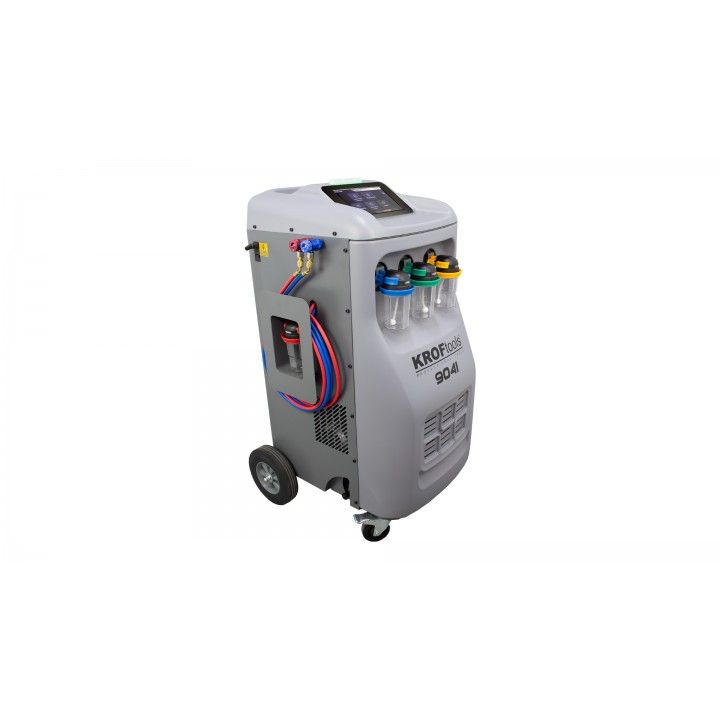

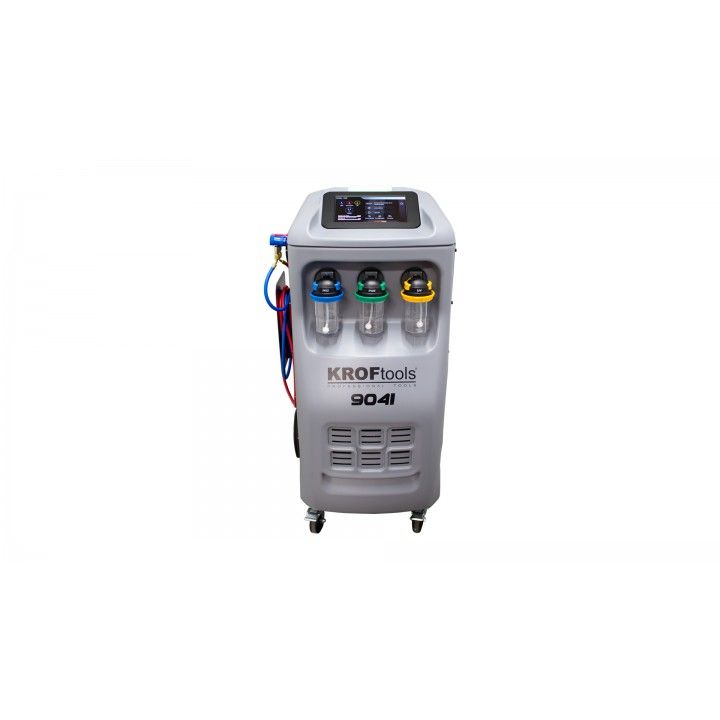

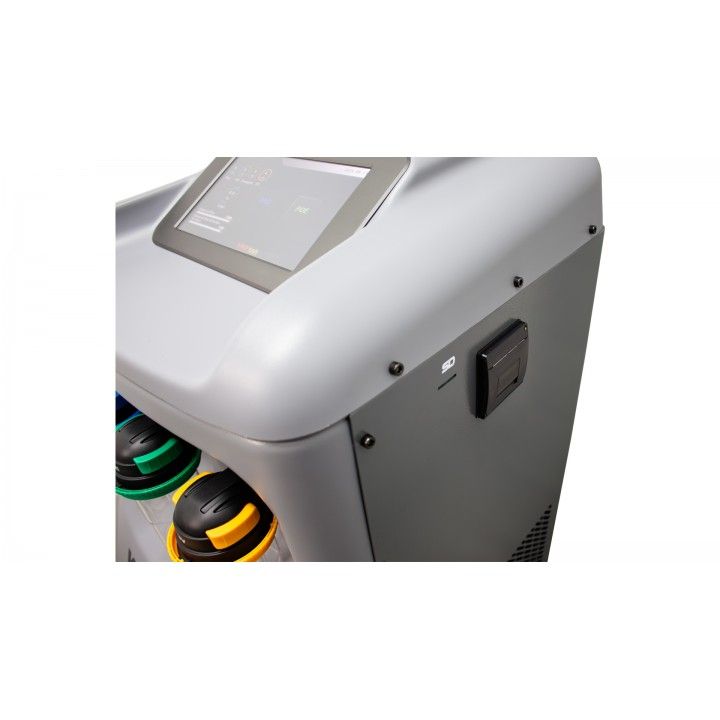

A/C SERVICE STATION - R1234yf
Ref: 9041
Characteristics:
Refrigerant: R1234yf
Power Supply: 220V
Power Consumption: 1200W
Unit Operating Temperature Range: -20ºC ~ +60ºC

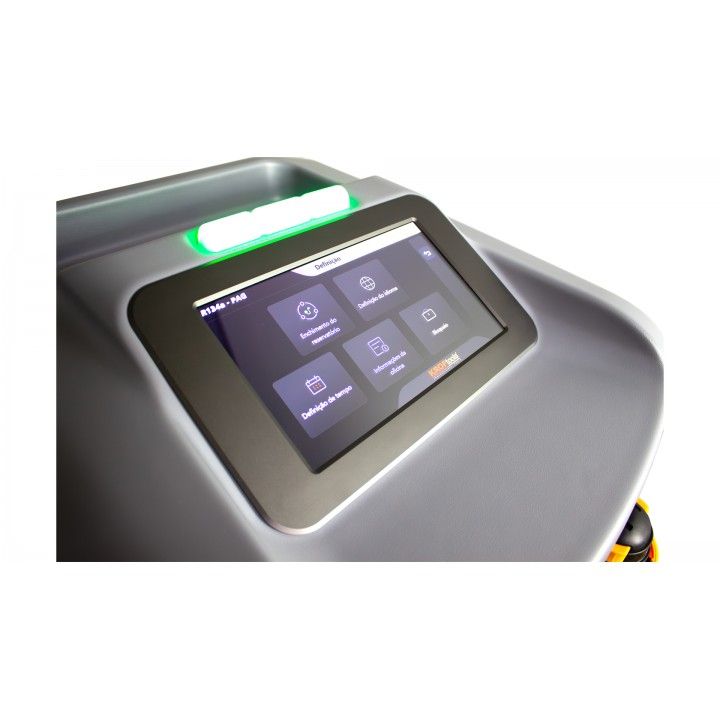

Display: 10” touch screen

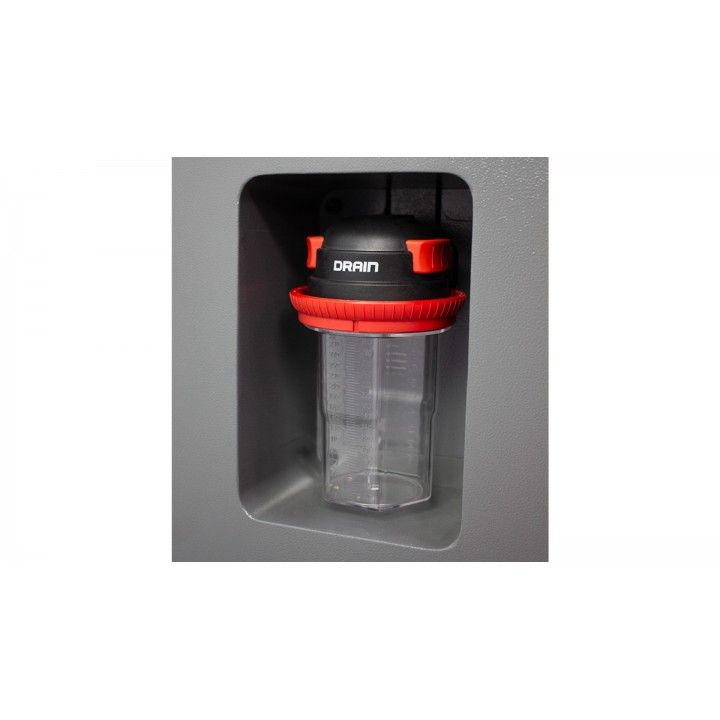

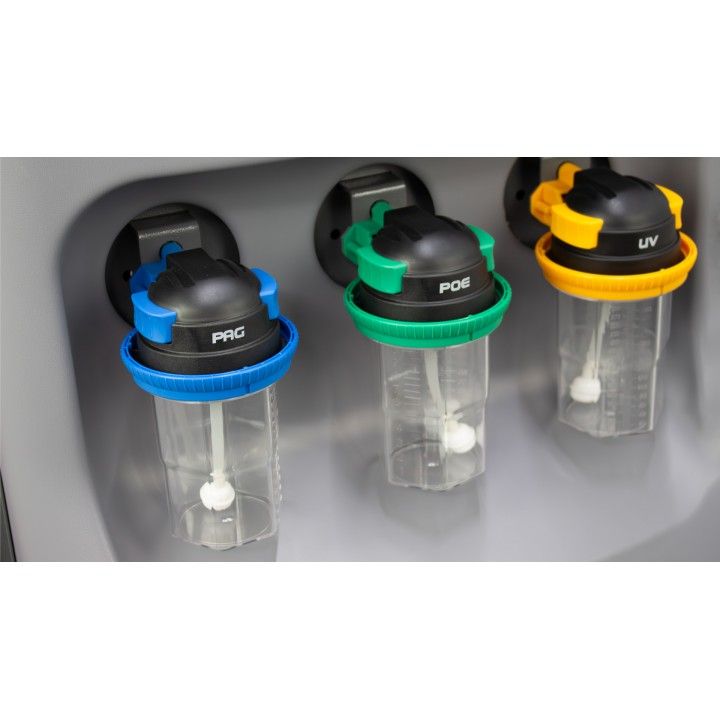

Oil bottle: 350ml (4 Sealed oil bottle, PAG/POE/UV/Used oil)
Electronic Scales: 5 (Refrigerant tank, PAG/POE/UV/Used oil);
Scale accuracy: 10g
Recovery efficiency: 95% above
Recovery ability: 3/8HP
Vacuum ability: 170L/min (6 CFM)

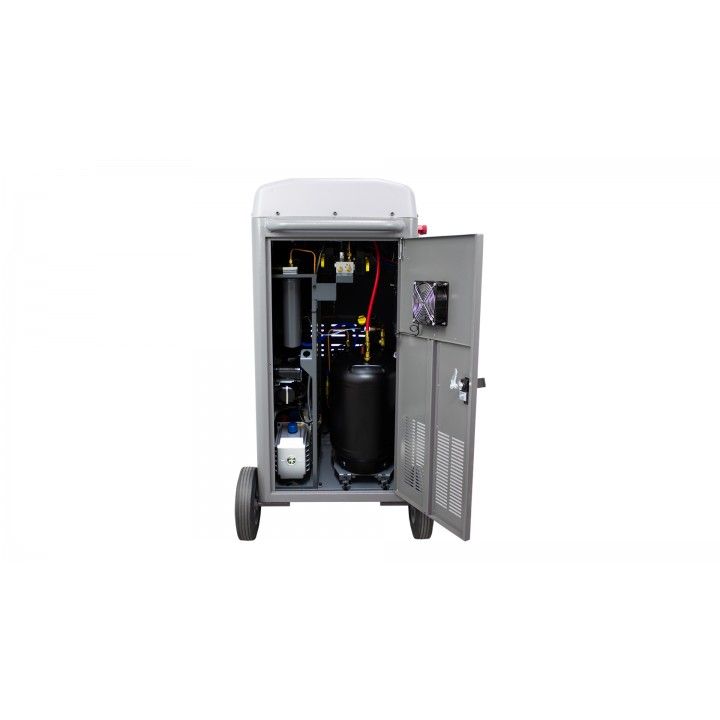

Refrigerant Tank Capacity: 12Kg, max 18Kg
Filter Capacity: 100Kg
Pressure Gauges: Digital pressure numeric display
Fan system: electronic redundant fans (x2)
Dimensions: 726.40mm (Length)*660mm (Width)*1163.81mm (Height)
Compatible machine oil: Specific for vacuum pumps
