TIMING TOOL MERCEDES M271 ENGINES
Ref: 1549
Characteristics:
• This kit makes it possible to position the camshafts into the installation position
• Retainer to draw in the timing chain
• To retain timing chain with camshaft sprockets in mesh
• For Mercedes M271
Application: E18ML from 2002, DE18ML 2003-2005, E16ML from 2008, DE18LA from 2009
Engines: 1.8 gasoline
Models: Classe C (02-15), Classe C Coupé (11-15), Classe CLC (08-12), CLK (02-09), Classe E (02-13), Classe E Coupé Cabriolet (04-13), SLK (04-15), Sprinter (09-15)
Engine Code: 271.921, 271.946, 271.942, 271.948, 271.820, 271.95, 271.860, 271.950, 271.955, 271.957, 271.941, 271.956, 271.943, 271.958, 271.944, 271.964, 271.861, 271.951

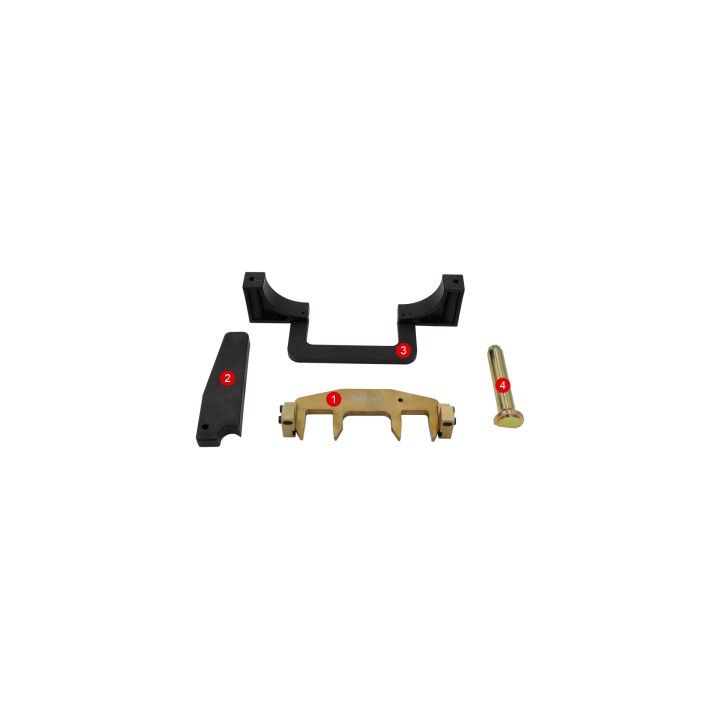

| Item | Description | OEM Code |
| 1 | Camshaft Locking Tool | 271 589 00 61 00 |
| 2 | Cam Chain Tensioner Rail Wedge | 271 589 00 31 00 |
| 3 | Cam Chain Retaining Bridge | 271 589 01 40 00 |
| 4 | Cam Chain Tensioner Drift | 271 589 00 15 00 |
